Use and transfer data in jobs on the HTC system

Which Option is the Best for Your Files?

Introduction

This guide covers general information on using and transferring data on the HTC system. We will introduce you to the two file systems, how to determine which one is the best place for your data, and how to edit your submit file to transfer input and output files.

Data storage locations

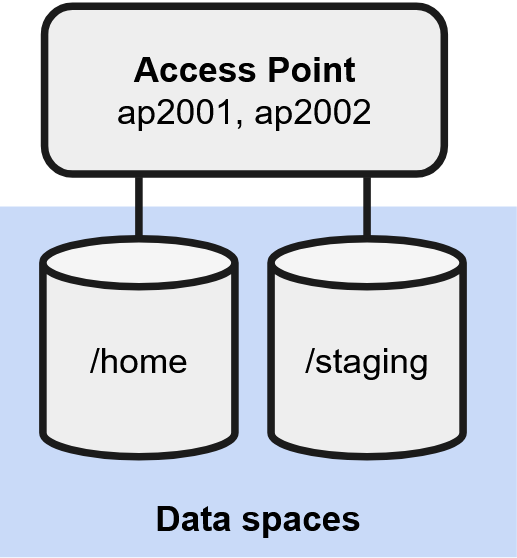

The HTC system has two primary locations where users can place their files:

The data management mechanisms behind /home and /staging are different and are optimized to handle different file sizes and numbers of files. It’s important to place your files in the correct location to improve the efficiency at which your data is handled and maintain the stability of the HTC file systems.

Need a /staging directory?

Transfer input data to jobs with transfer_input_files

To transfer files to jobs, we must specify these files with transfer_input_files in the HTCondor job submit file. The syntax you use will depend on its location and file size.

Multiple input files and file transfer protocols can be specified and delimited by commas, as shown below:

# My job submit file

transfer_input_files = file1, osdf:///chtc/staging/username/file2, file:///staging/username/file3, dir1, dir2/

requirements = (HasCHTCStaging == true)

... other submit file details ...

⚠️ File transfers with file:///

If you are transferring files with file:///, include the following requirement:

requirements = (HasCHTCStaging == true)

Ensure you are using the correct file transfer protocol for efficiency. Failure to use the right protocol can result in slow file transfers or overloading the system.

⚠️ File transfers and caching with osdf:///

The osdf:/// file transfer protocol uses a caching mechanism for input files to reduce file transfers over the network.

The caching mechanism enables faster transfers for frequently used files/containers. However, older versions of frequently modified files may be transferred instead of the latest version.

If you are changing the contents of the input files frequently, you should rename the file or change its path to ensure the new version is transferred.

Transfer output data from jobs

Default behavior for transferring output files

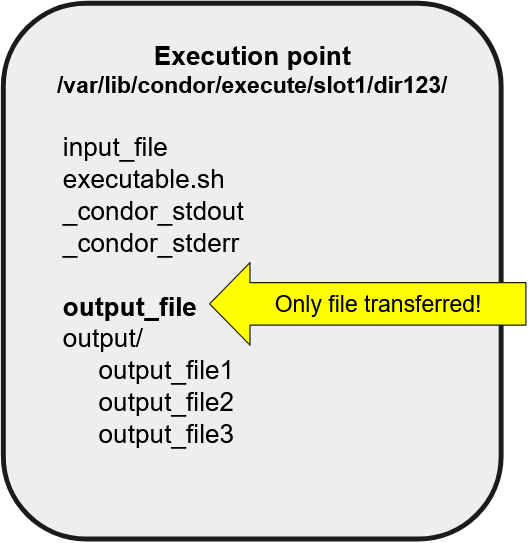

When a job completes, by default, HTCondor will only return newly created or edited files in top-level directory back to your /home directory. Files in subdirectories are not transferred. Ensure that the files you want are in the top-level directory by moving them, creating tarballs, or specifying them in your submit file.

Specify which output files to transfer with transfer_output_files

If you don’t want to transfer all files but only specific files or subdirectories, in your HTCondor submit file, use

transfer_output_files = output_file, output/output_file2, output/output_file3

Transfer files to other locations with transfer_output_remaps

To transfer files back to /staging or a specific directory in /home, you will need an additional line in your HTCondor submit file, with each item separated by a semicolon (;):

transfer_output_remaps = "output_file = osdf:///chtc/staging/NetID/output1.txt; output_file2 = /home/netid/outputs/output_file2"

In this example above, output_file is remapped to the staging directory using the file:/// transfer protocol and simultaneously renamed output1.txt. In addition, output_file2 is transferred to a different directory on /home. The last output file, output_file3 is transferred back to the original directory from where the job was submitted from. Ensure you have the right file transfer syntax (osdf:/// or file:/// depending on the anticipated file size).

Make sure to only include one set of quotation marks that wraps around the information you are feeding to transfer_output_remaps.

Transfer files to other locations with output_destination

If you want to transfer all files to a specific destination, use output_destination:

output_destination = osdf:///chtc/staging/netid/

Do not use output_destination and transfer_output_remaps simultaneously.

Transfer and unpack files with osdf:///

The osdf:/// file transfer plugin is powered by the Pelican Platform. One useful feature is that the plugin can be configured to unpack files during the transfer step. This can reduce the amount of disk space you need to request (for the compressed file and the unpacked file contents) and eliminate an unpacking step in your executable.

To transfer and unpack files, append a ?pack=auto at the end of the plugin path of the compressed object to be transferred.

transfer_input_files = osdf:///chtc/staging/netid/filename.tar.gz?pack=auto, input1.txt, input2.txt

This feature is only availble for Pelican-based plugins (osdf://, pelican://) and is not available for file:// or normal file transfers. This feature is also not recommended for compressed files larger than 30 GB.

Read more about unpacking files in the Pelican documentation.
